Description:
The Handheld Colposcope System is a medical imaging device designed for magnified visualization and examination of the cervical and lower genital tract areas. Handheld Colposcope integrates high-definition optics, digital imaging, and software management to support diagnostic procedures in gynecology. The system of handheld colposcope includes a colposcope unit, data accessories, and compatibility with various computer configurations for seamless operation.
Functions:
1.High-Magnification Imaging:
Provides adjustable magnification from 1x to 30x (in 1x steps) for detailed tissue observation.
2.Digital Documentation:
Captures and stores images/videos via a SONY HD CCD camera system and software.
3.Specialized Lighting:
Uses a super-bright white LED light source (uniform brightness, ≥2000 lx illuminance, ≥5100K color temperature) with a lifespan of 100,000 hours.
4.Software Management:
Supports patient data management, report generation, image annotation, and terminology customization.
User Controls:

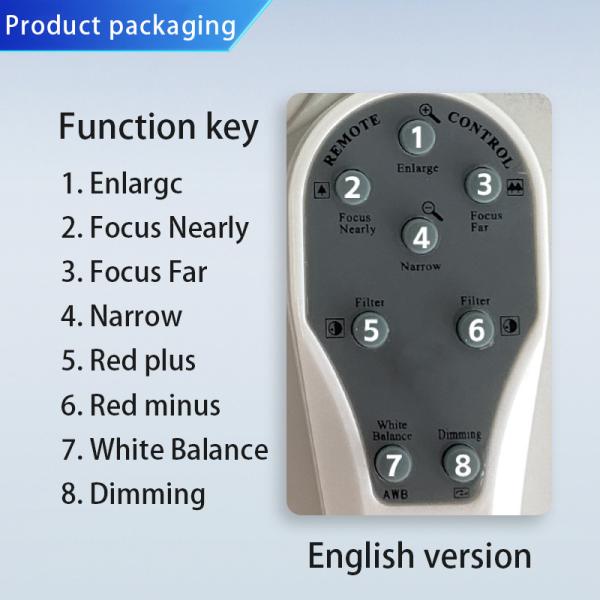

5.Features zoom, focus (auto/manual), green/red filters, foot-pedal image capture, and white balance adjustment.
Components & Compatibility:
1.Included Accessories:

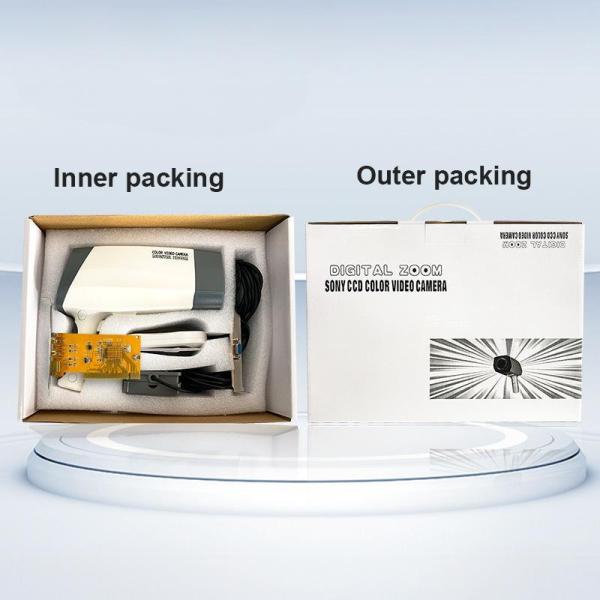

Colposcope, data cable (with remote control and COM foot switch), PCI video capture card, 12V power adapter, USB-to-232 conversion cable.
2.Computer Compatibility:
Works with laptops, desktops, and all-in-one PCs running Windows XP/7/8/10/11.
Requires a PCI slot for the capture card (USB alternative provided if unavailable).
3.Language Support:
Chinese/English software, labels, and packaging.
Applications:
1.Gynecological Diagnostics: Detection of cervical abnormalities, precancerous lesions, or infections.
2.Clinical Documentation: Image-guided patient records and reporting for hospitals/clinics.
3.Training and Education: Visual aid for medical teaching and patient counseling.
Specification:
| Working Distance | 30–40 cm at max magnification |
| Field of View | 25–300 mm |
| Depth of Field | ≥100 mm at max magnification |
| Camera Resolution | ≥750 TVL horizontal resolution |
| Light Spot Diameter | ≥60 mm |
| Illumination Uniformity | ≤1.2 deviation |
